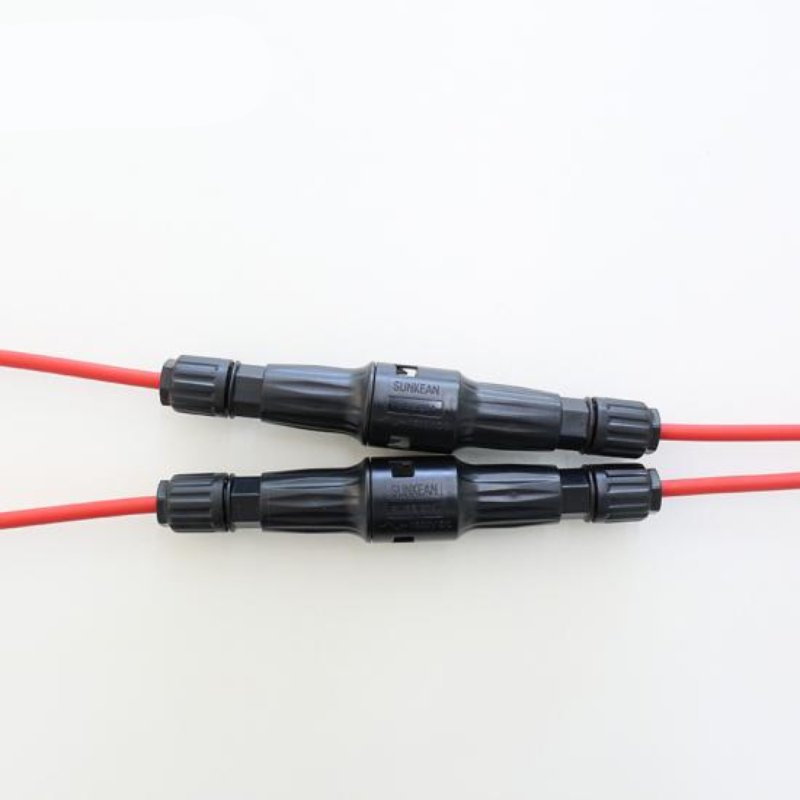

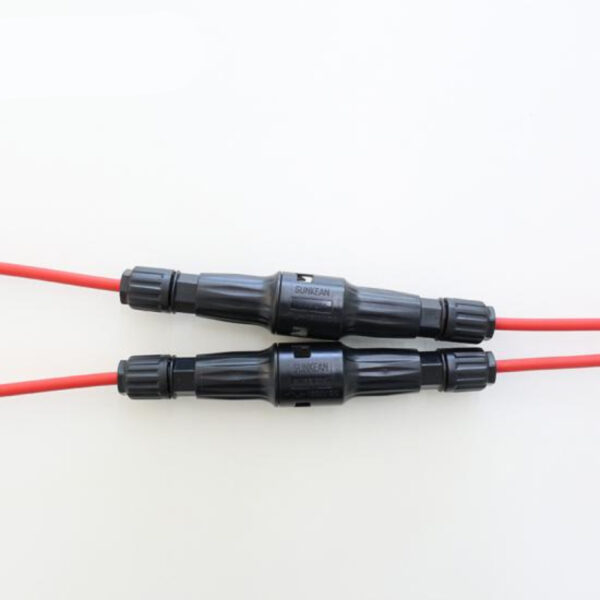

1500DC Solar PV Harness with 20A Fuse

The 1500C DC inline fuse connector protects the overload current of solar panel and inverter. It is compatible with multi-center connector and other types.

IEC

The plugs and connectors coupled in a photovoltaic system must be of the same type and from the same manufacturer, that is, a connector from one manufacturer should not be used to make a connection with another connector from a different manufacturer.

Phone Number +1 214 7858081

Category: HARNESS

Description

Description

Inline fuse can be replaced, fast and reliable connection, UV resistance and IP68 waterproof, can work outdoors for 25 years.

Characteristics

Double wall insulation. Electron beam cross-linking.
Excellent resistance to UV rays, oil, grease, oxygen and ozone.
Excellent abrasion resistance Halogen free, flame retardant, low toxicity, ROHS
Excellent flexibility and peeling performance.
High voltage and current carrying capacity.
TUV, CE, ISO approval

Technical data sheet

Insulation material	PA/EPP	Security level	II
Nominal current	30A (without fuse)	Fuse specification	20A
Nominal voltage	1500V DC	Class of flame	UL94-V0
Test voltage	8 kV	Ambient temperature range	-40℃… +85℃ (IEC）
Typical contact resistance	＜5 mΩ	Upper maximum temperature	110℃(IEC)
Contact material	Copper, tinned	Proper fuse size	10*85
Degree of protection	IP68	Homologation	TUV / CE (IEC62852:2014)
