Description

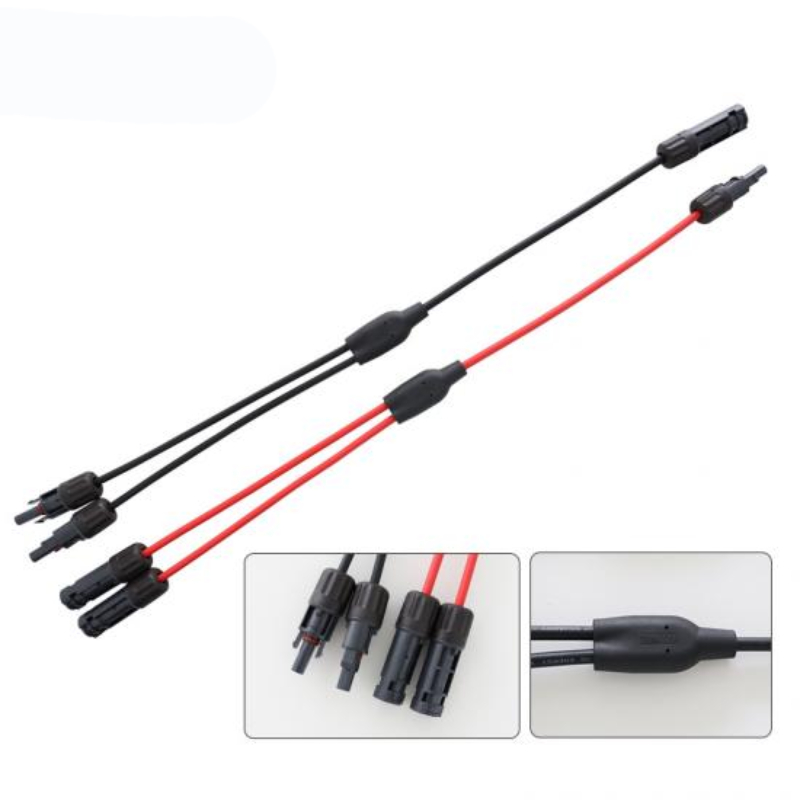

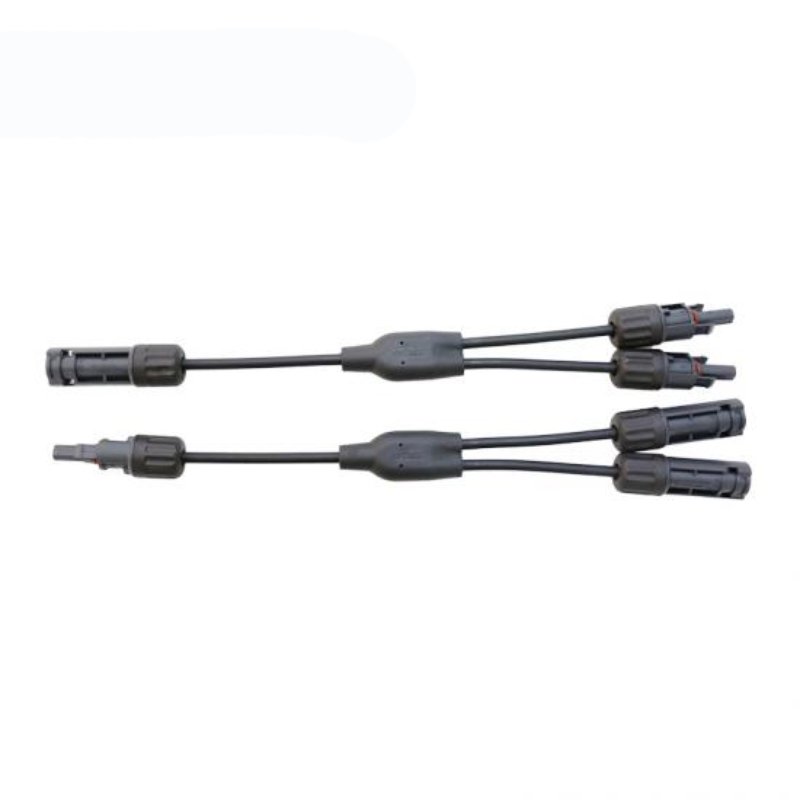

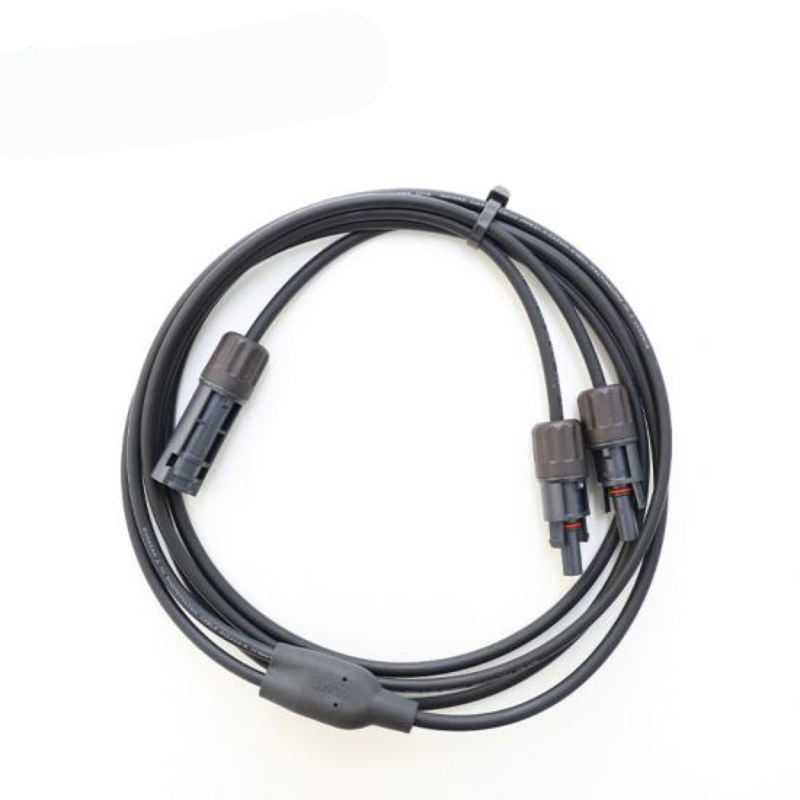

2 to 1 Y connector connecting solar panels in parallel or series (1 Set = 2Male/1Female + 2Female/1Male) is a pair of MC4 cable connectors for solar panels. These connectors are normally used to join 2 string solar panels also parallel connection.
- Double wall insulation. Electron beam cross-linking
- Excellent resistance to UV rays, oil, grease, oxygen and ozone
- Excellent abrasion resistance Halogen free, flame retardant, low toxicity, ROHS
- Excellent flexibility and peeling performance
- High voltage and current carrying capacity
- TUV, CE, ISO approval
Description of MC4 Solar Waterproof Connector:
- IP68 waterproof and UV resistant, suitable for outdoor terrible environments
- Safe, easy and fast on-site processing
- Security in mating provided by lockable accommodations
- Multiple plug and unplug cycles
- Compatible with different sizes of commonly used PV cables
- High current carrying capacity
Technical data sheet
| Insulation material | PPE/TPE | Security level | II |
| Nominal current | 30A | Overvoltage category/pollution degree | CATIII/2 |
| Nominal voltage | 1500V (IEC)/600V(UL) | Class of flame | UL94-V0 |
| Test voltage | 6500V(50Hz,1min) | Ambient temperature range | -40℃… +85℃ (IEC） |
| Typical contact resistance | ＜5 mΩ | Upper maximum temperature | 110℃(IEC) |
| Contact material | Copper, tinned | Suitable cable cross sections | 2.5-6sqmm&14-10AWG |
| Degree of protection | IP68 |
