Description

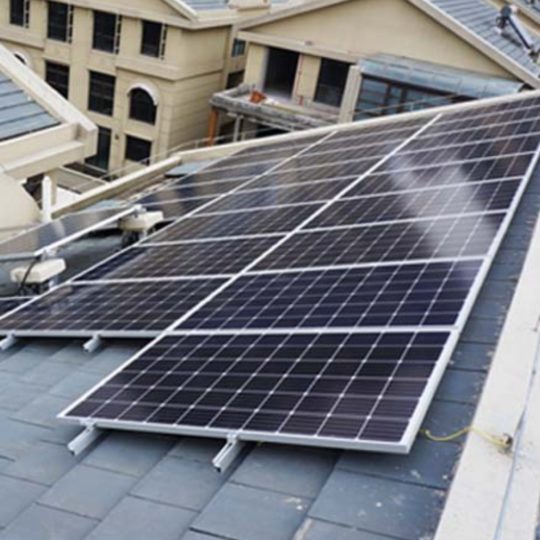

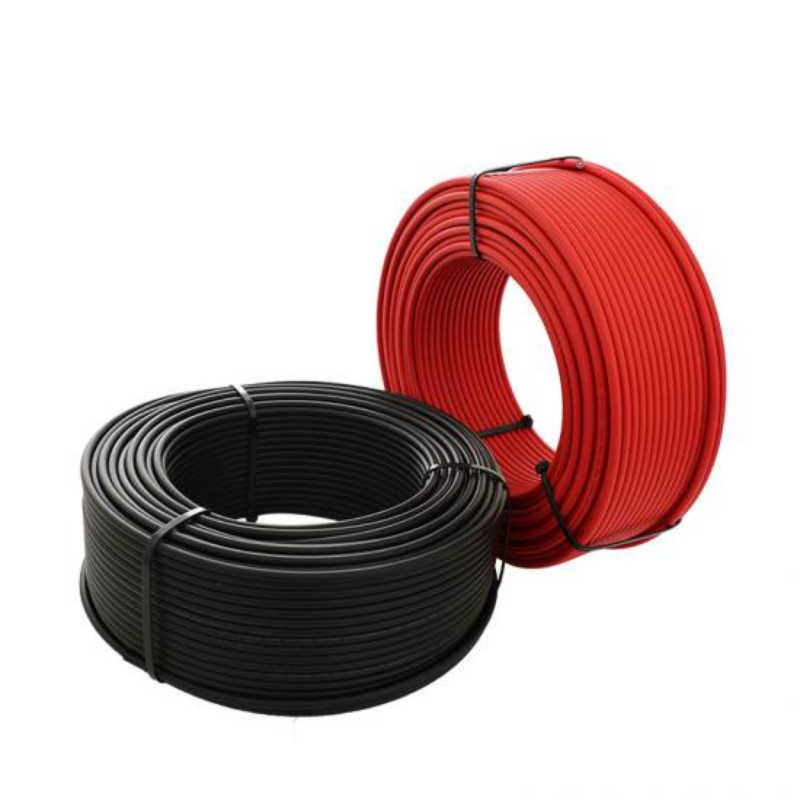

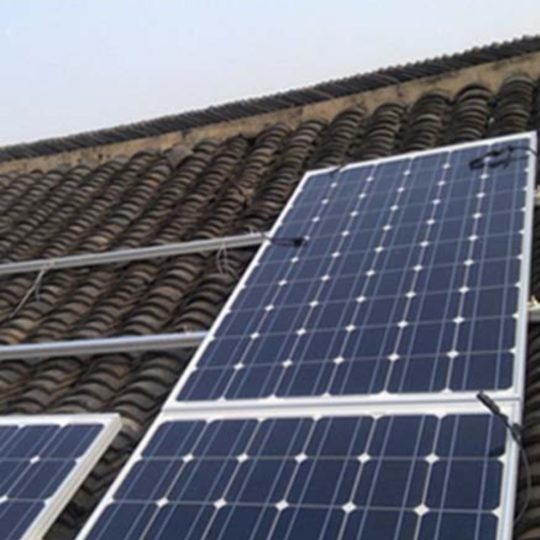

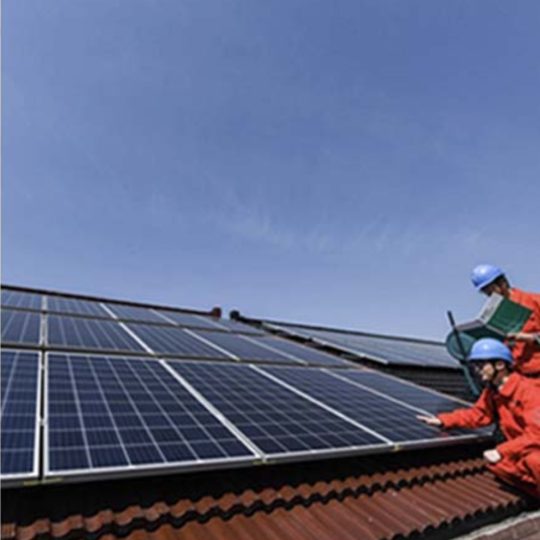

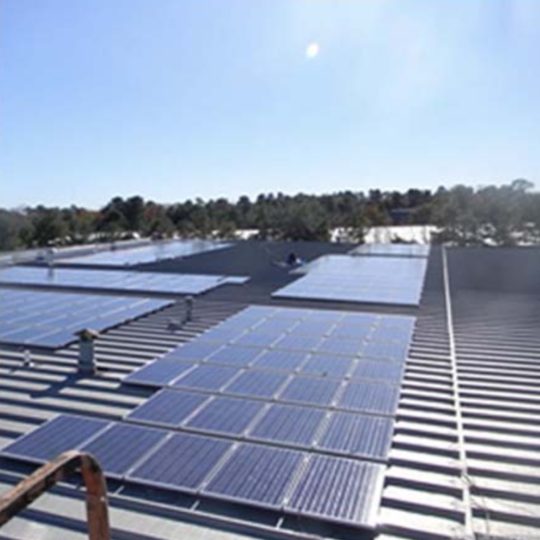

We are one of the Asian manufacturers and suppliers of PV cables. Our H1Z2Z2-K cables comply with CPR DCA certifications valid for both solar plants and rooftop PV installations, which can simplify your PV cable stock needs.
Technical data sheet
| Voltage (Uo/U) | DC: 1500V | Test voltage | 6500V AC |
| Temperature | Rated: -40°C to +90°C Max Duct Temp: +120°C Short Circuit: +250°C |
Minimum radius of curvature | Ø≤12mm 4 x total diameter Ø>12mm 10 x total diameter |
| Test standard | Smoke density test: transmittance ≥ 60% EN50618
Cold bending test: -40 ° C ± 2 ° C without cracks EN60811-504 |
Variations
| Cross section (mm²) | Construction (No./mm) | Insulation OD (mm) | cable od (mm) | Max conductor resistance (Ώ/km) |
| 1.5 | 30/0.25 | 3.05 | 4.7 | 13.7 |
| 2.5 | 49/0.25 | 3.50 | 5.2 | 8.21 |
| 4.0 | 56/0.285 | 3.85 | 5.5 | 5.09 |
| 6.0 | 84/0.285 | 4.45 | 6.1 | 3.39 |
| 10 | 77/0.4 | 5.50 | 7.2 | 1.85 |
| 16 | 126/0.4 | 6.90 | 8.8 | 1.24 |
| 25 | 196/0.4 | 8.70 | 10.8 | 0.795 |
| 35 | 276/0.4 | 10,00 | 12.4 | 0.565 |
