Description

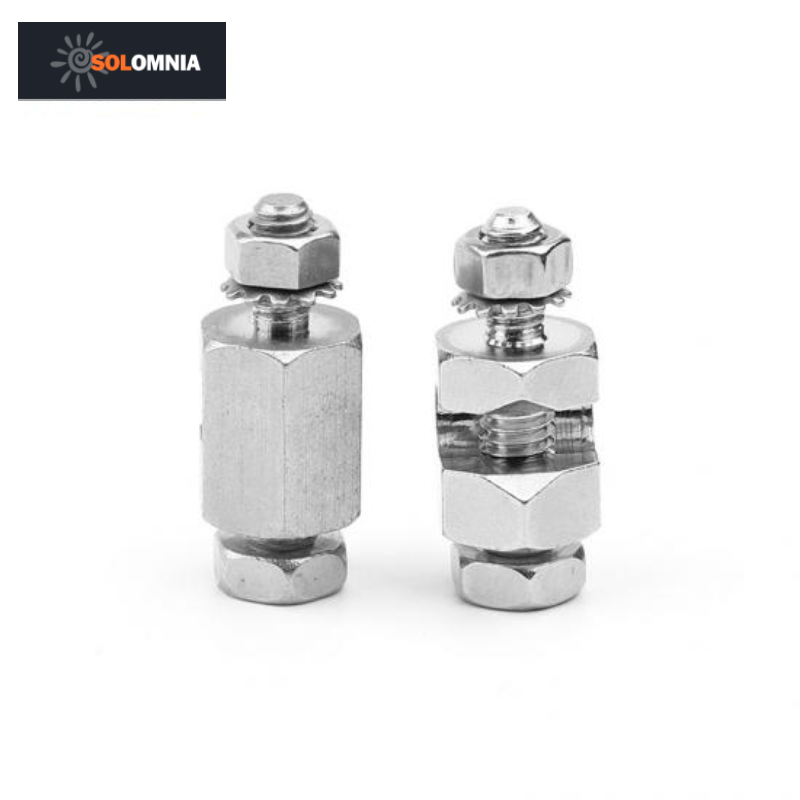

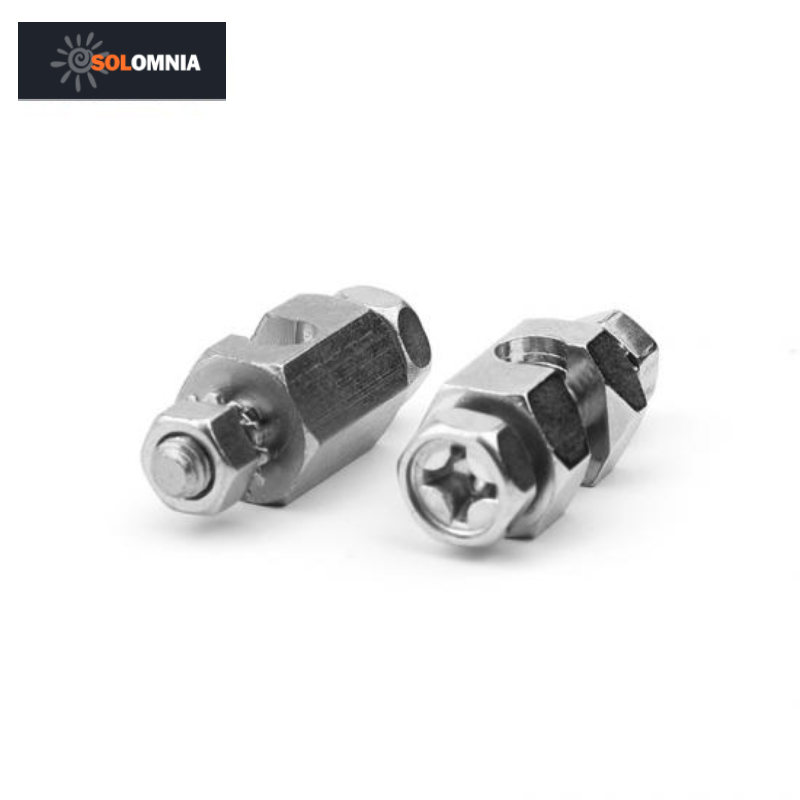

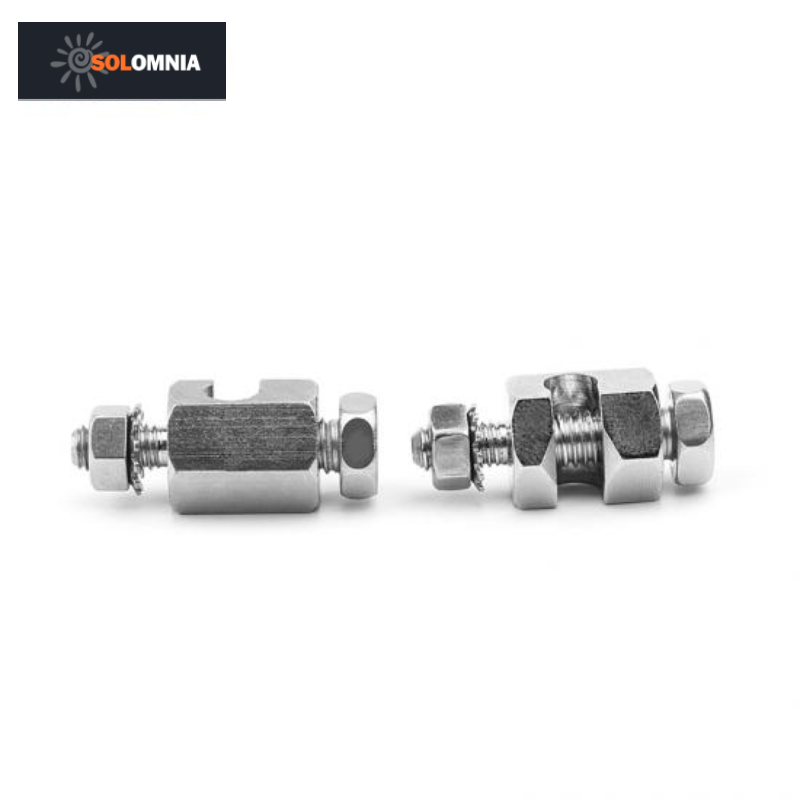

This grounding connector shortens the installation time of a ground wire to a solar panel frame. The threaded connector inserts through a hole in the frame and uses two hex nuts to help provide a reliable connection. When connecting to the frame, the connector body and one-piece lock washer nut penetrate the surface of the aluminum frame helping to create a reliable ground path. Strong spring pressure, available in different amperages.
| Model No. | SKE-ECP |
| Material | Tinned copper |
| Dimensions | 13mm * 32mm |
| Room temperature | -40ºC … +90ºc |
| Frame thickness range | 0.8 – 4.5mm |
| Mounting hole diameter | ø4.0 mm / ø5.0 mm |
| Wire Size (mmsq/AWG) | 2.5 / 4 / 6 / 10 mm² & 14 / 12 / 10 / 8 / 6awg |
| Voltage used | 600-1500v |
- Quick and easy assembly procedures.
- Sturdy and compact hex bolt design made of stainless steel.
- The bottom edge feature cuts into the anodized aluminum surface when securing the hex bolt to the module frame.
- Standard tools can be used with hex nuts.
- Concise product appearance.
- Assembly of several small, flexible and equipped locations.
