Description

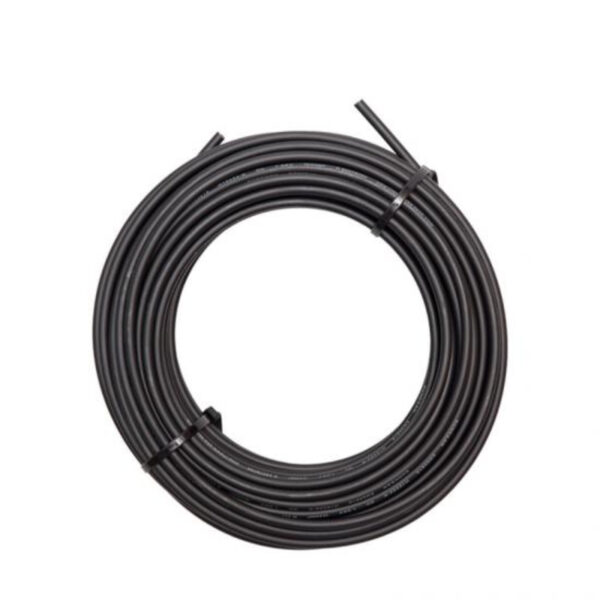

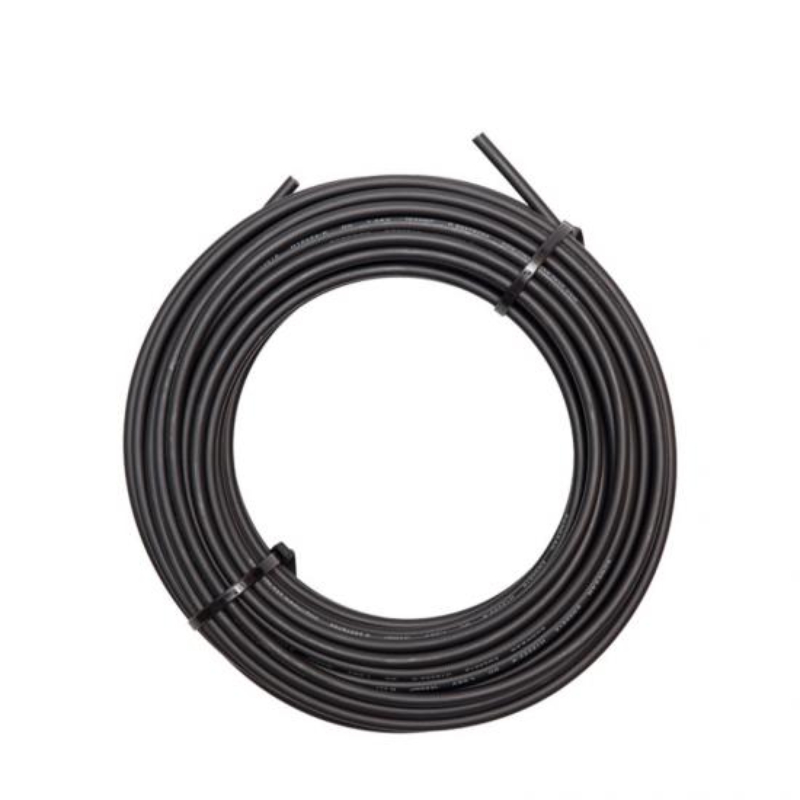

Waterproof photovoltaic cable, conforms to EN50618 & IEC6293 standard, passed DIN VDE0285-525221 / DIN EN50525-2-21 Annex E, AD7 level of protection against water ingress test, can be used in humid environment, with good waterproof effect.
Technical data sheet
| Voltage (Uo/U) | DC: 1500V | Test voltage | 6500V AC |
| Temperature | Rated: -40°C to +90°C Max Duct Temp: +120°C |
Minimum radius of curvature | Fixed installation 5x exterior Ø |
| Water resistant | din VDE0285-525221 / DIN EN50525-2-21 appendix Cold bending test: -40 ° C ± 2 ° C without cracks EN60811-504 |
Water ingress protection level | AD7 |
Product parameters
| Cable name | Construction (No./mm) | Inner layer (mm) | Outer layer (mm) | Max. conductor resistance (Ώ/km) |
| 62930 IEC131 / H1Z2Z2-K | 78/0.295 | 4.45 ± 0.10 | 6.10 ± 0.15 | 13.7 |
